Outdoor Quran Reciter

Solar-Powered • APP-Controlled • Preloaded Recitations

USER MANUAL

Download APP

1 Getting Started

Welcome to your Outdoor Quran Reciter QR114. This device is designed to provide beautiful recitations of the Holy Quran in outdoor settings. It is powered by solar energy and can be controlled via our dedicated mobile application.

Before first use, please ensure the device is fully charged by placing it in direct sunlight for at least 2 hours.

Device in sunlight

2 What's In the Box

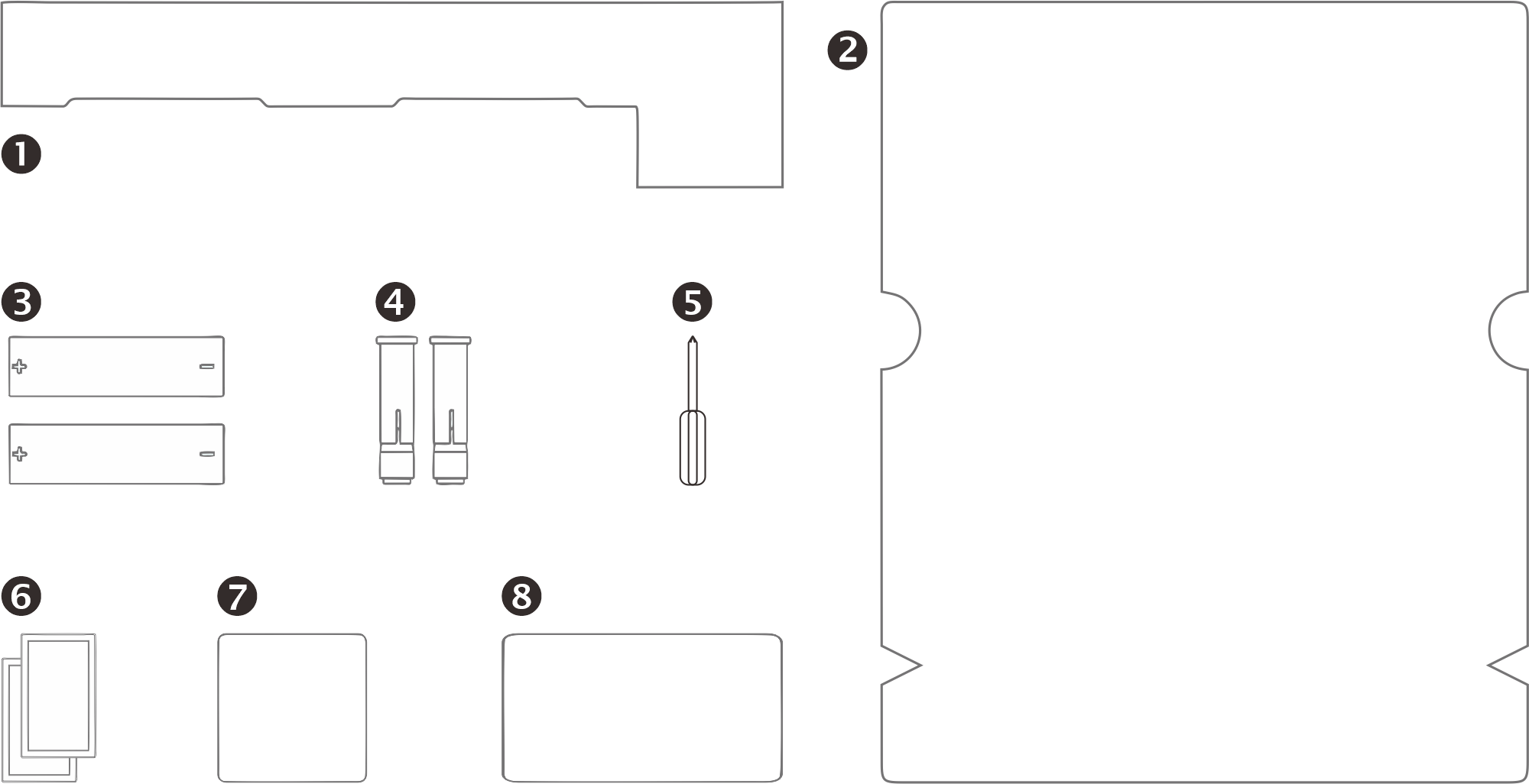

Contents laid out
  1. QR114 Device
  2. Template for Using anchor bolt
  3. 18650 Battery x 2 pre-installed
  4. 10M Anchor Bolt
  5. Phillips Screwdriver
  6. Clean Wipes
  7. Double-side Adhesive Tape
  8. User Manual QR Code

3 Battery Installation

Critical Warning:

Incorrect battery installation may permanently damage the device.

  • Ensure the negative (-) terminals face INWARD (toward the springs).
  • Reverse polarity will damage the device.

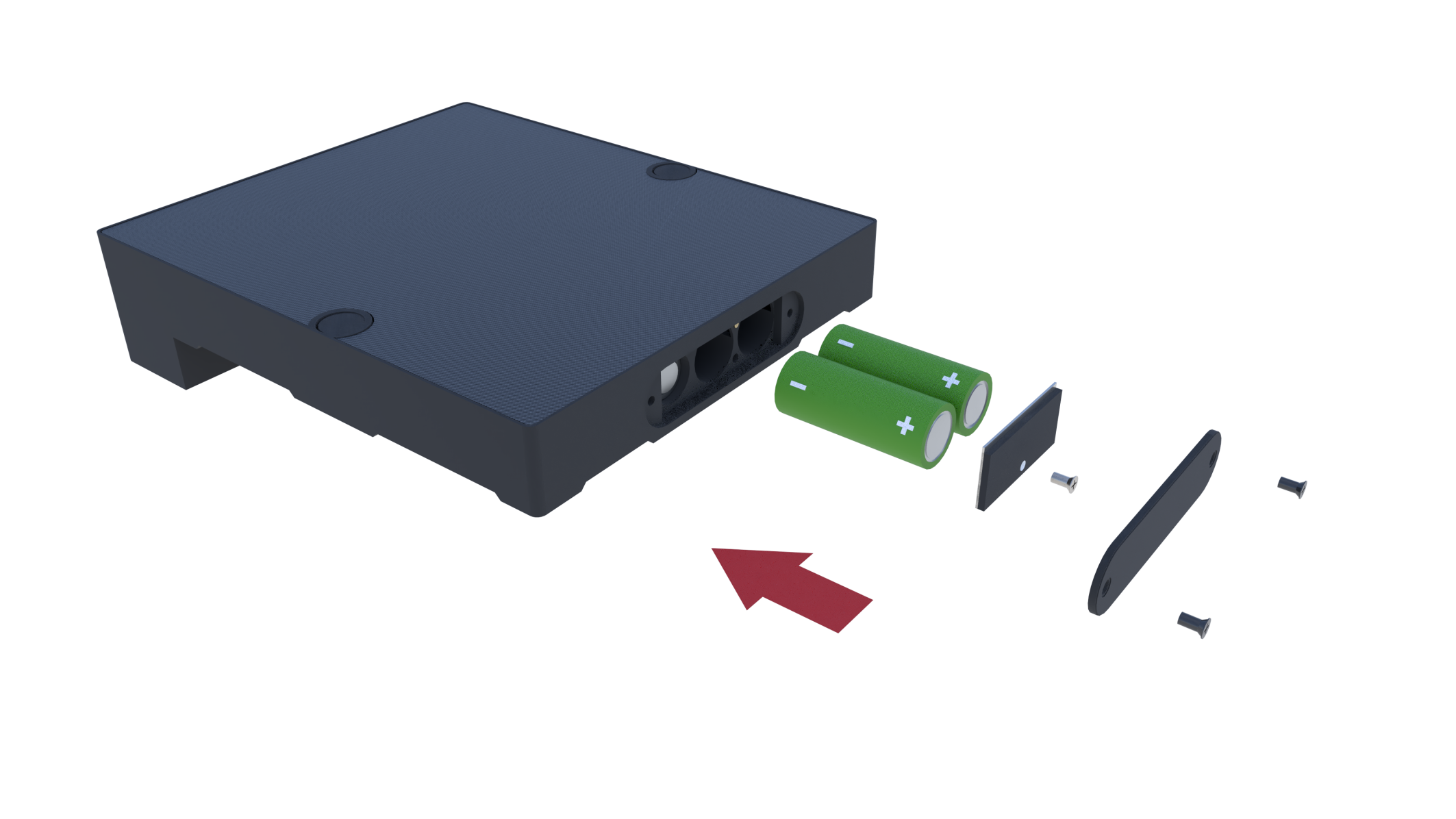

Battery compartment overview
  1. Use the provided Phillips screwdriver to unscrew the 2x M3 screws on the edge of the back cover. Lift the cover off.
  2. Unscrew the 1x M3 screw on the stainless steel (SS304) battery cover and remove it.
  3. Place the 2x 18650 batteries (3.7V 2200mAh) into the compartment, ensuring the negative (-) terminals face inward.
  4. Replace the battery cover and screw it in place. Then, reattach the main back cover and secure it with the 2x M3 screws.

4 Device Overview

Front / Top View

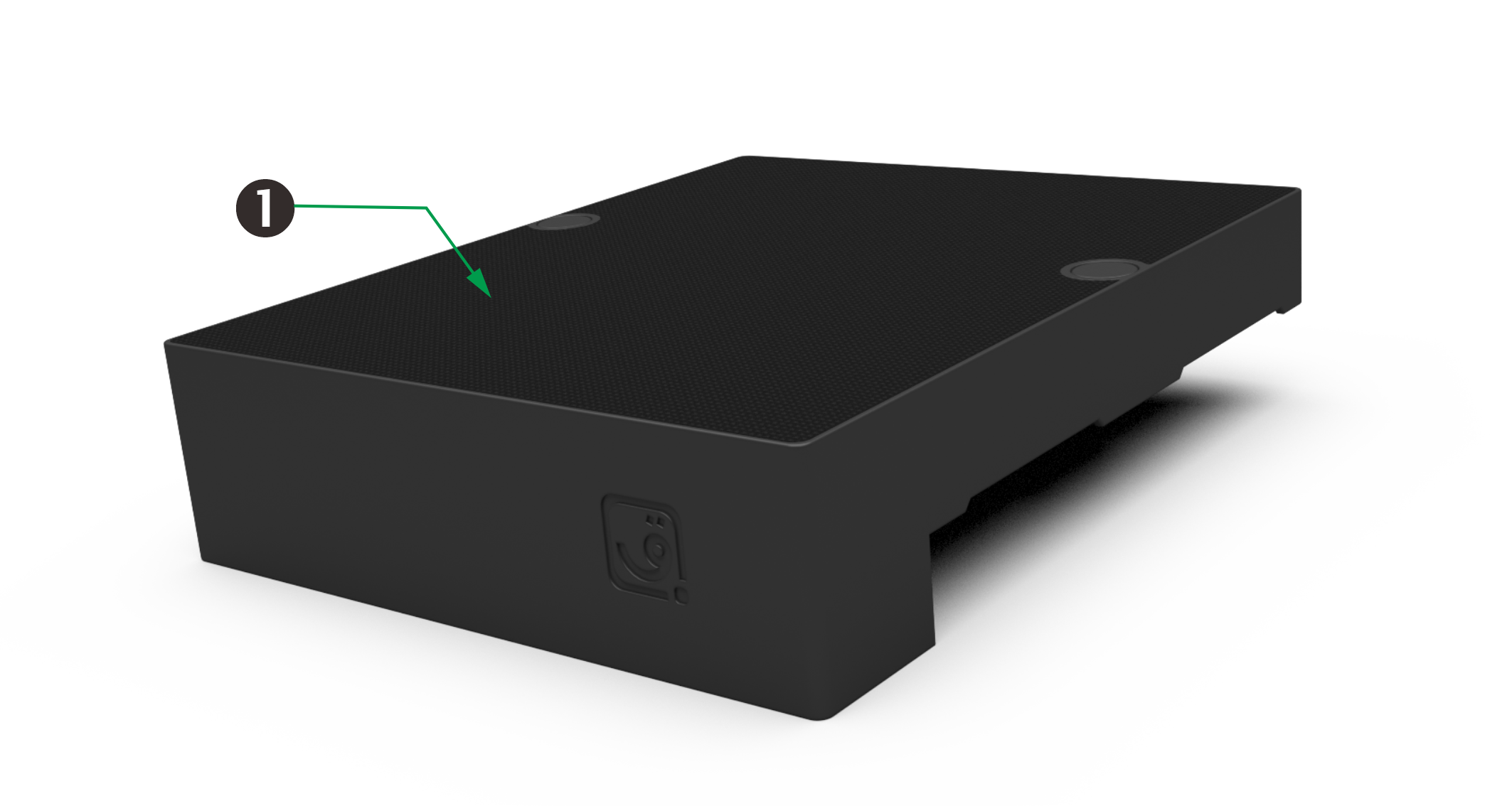

Front of device
  1. Solar Panel

Back / Bottom View

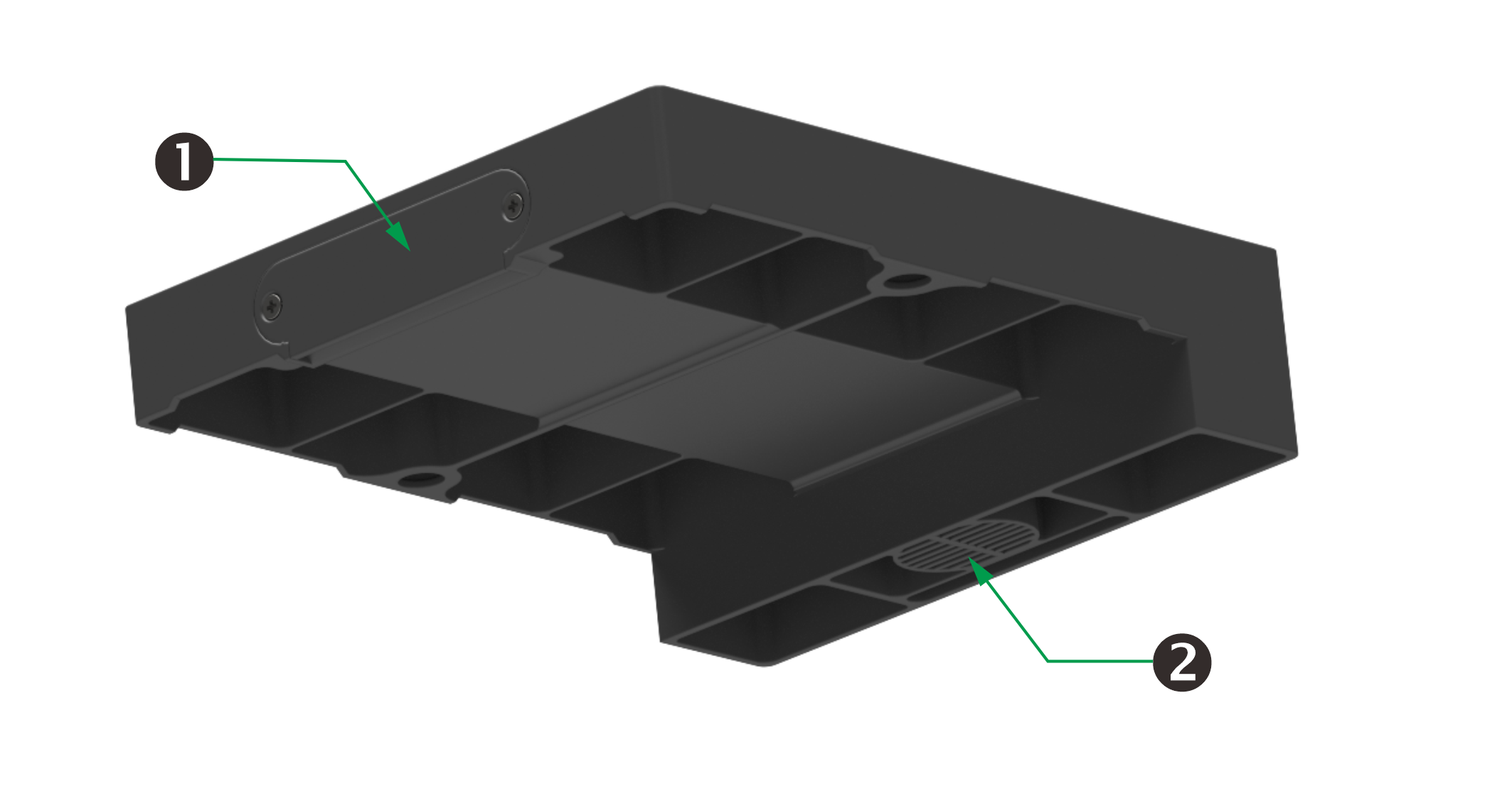

Back of device
  1. On/Off Switch & Battery Compartment, only physical control button, Holds 2×18650 batteries (2200mAh 3.7V)
  2. Speaker Grille 3W waterproof audio output

5 Initial Setup & Power On

  1. Pull the Battery safety tab.
  2. The device will play an Arabic recitation ("Bismillah...") automatically to indicate it is on.
  3. When turning the device Off, it will emit two beeps.

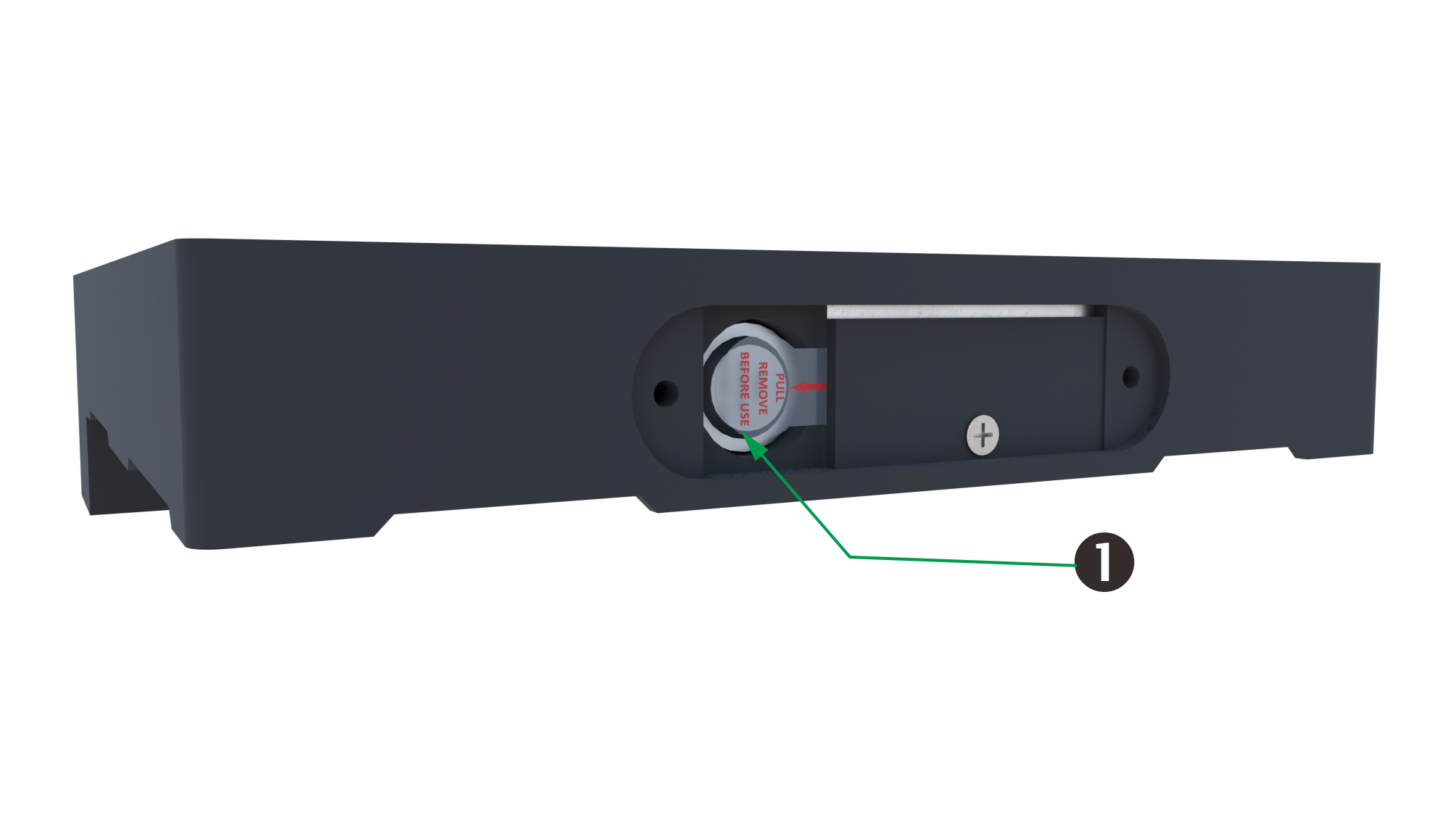

Pull the battery safety tab

6 Mobile App Installation

Currently supports Android devices only (for test devices).

Method A: QR Code Scan

  1. Open your phone's camera.
  2. Scan the QR code below.
  3. Tap the download link that appears.
QR Code

Method B: Website

  1. Visit www.qr114.com to download the app.

7 First-Time Connection & App Registration

Step 1: Language Selection

App language selection screen

Step 2: Device Registration

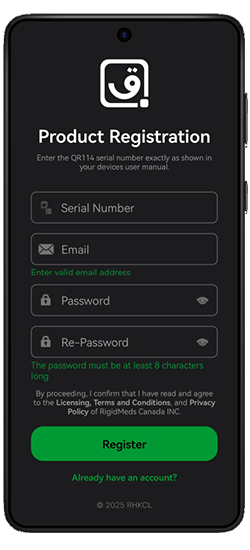

App registration screen

Step 3: Pairing Process

  1. Ensure the QR114 device is On (you will hear the "Bismillah" recitation).
  2. In the app, tap "Add Device".

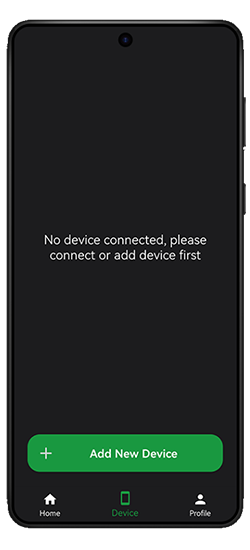

App 'Add Device' screen
  1. Enter the PIN when prompted.
App PIN entry screen
  1. A confirmation chime will play from the QR114 device to indicate successful pairing.

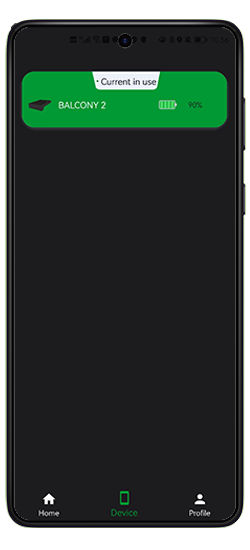

App pairing success screen

8 Playing Quran Recitations

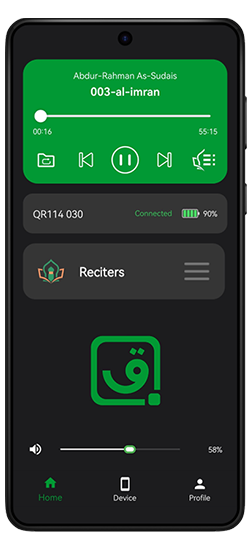

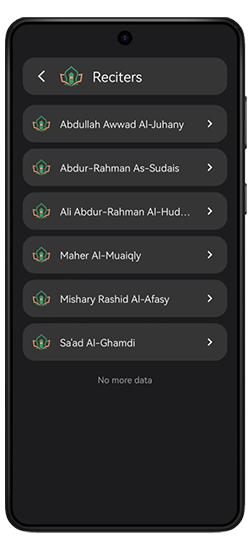

App navigation flow Reciter selection screen Surah selection screen Playback screen

Note: When the app disconnets from the QR114 device, the volume will automatically reduce to a level below sound pollution (for test devices).

9 Advanced Controls

You can rename your device for easy identification (e.g., "Garden" or "Balcony").

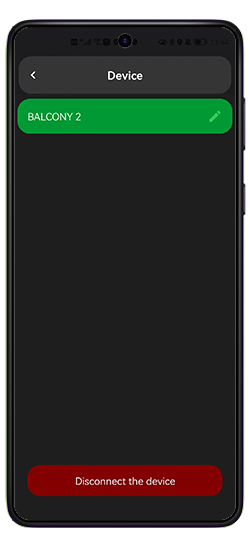

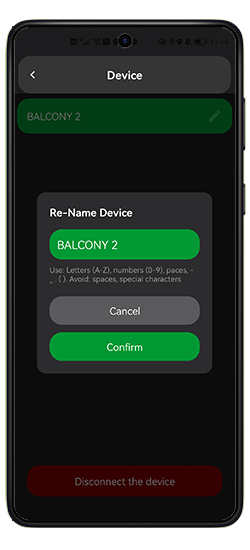

Device settings menu Rename device screen

10 Technical Specifications

Feature Detail
Solar Input 5V / 5W (ETFE panel)
Battery 2×18650 (3.7V 2200mAh)
Water Resistance IPX5 (rain and splash-proof)
Storage 32GB internal (non-expandable)
Playback Time 24/7 with adequate solar charging

11 Troubleshooting

Issue Solution
App won't connect 1. Re-enable Bluetooth on your phone.
2. Re-enter the PIN correctly.
3. Restart the app and the QR114 device.
No solar charging 1. Wipe the solar panel with a dry cloth.
Audio distortion 1. Reduce the volume level below 80%.
Password forgotten 1. Use the "Forgot Password" link on the app login screen.
